To change the WebServer IP Address on a Color Screen Clock (TFT)...

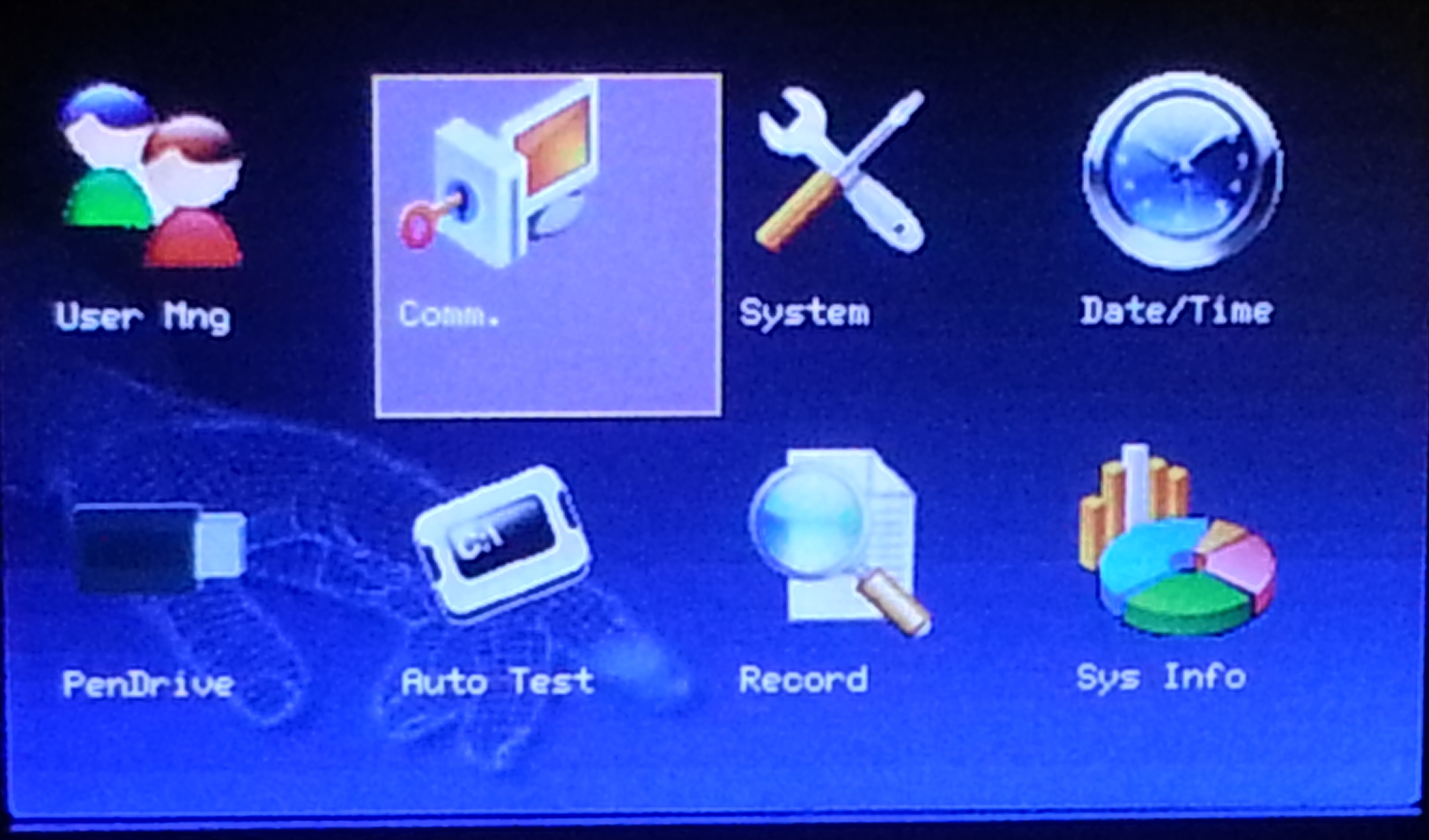

1) Access the Menu (supplying authentication as needed) and Select "Comm"

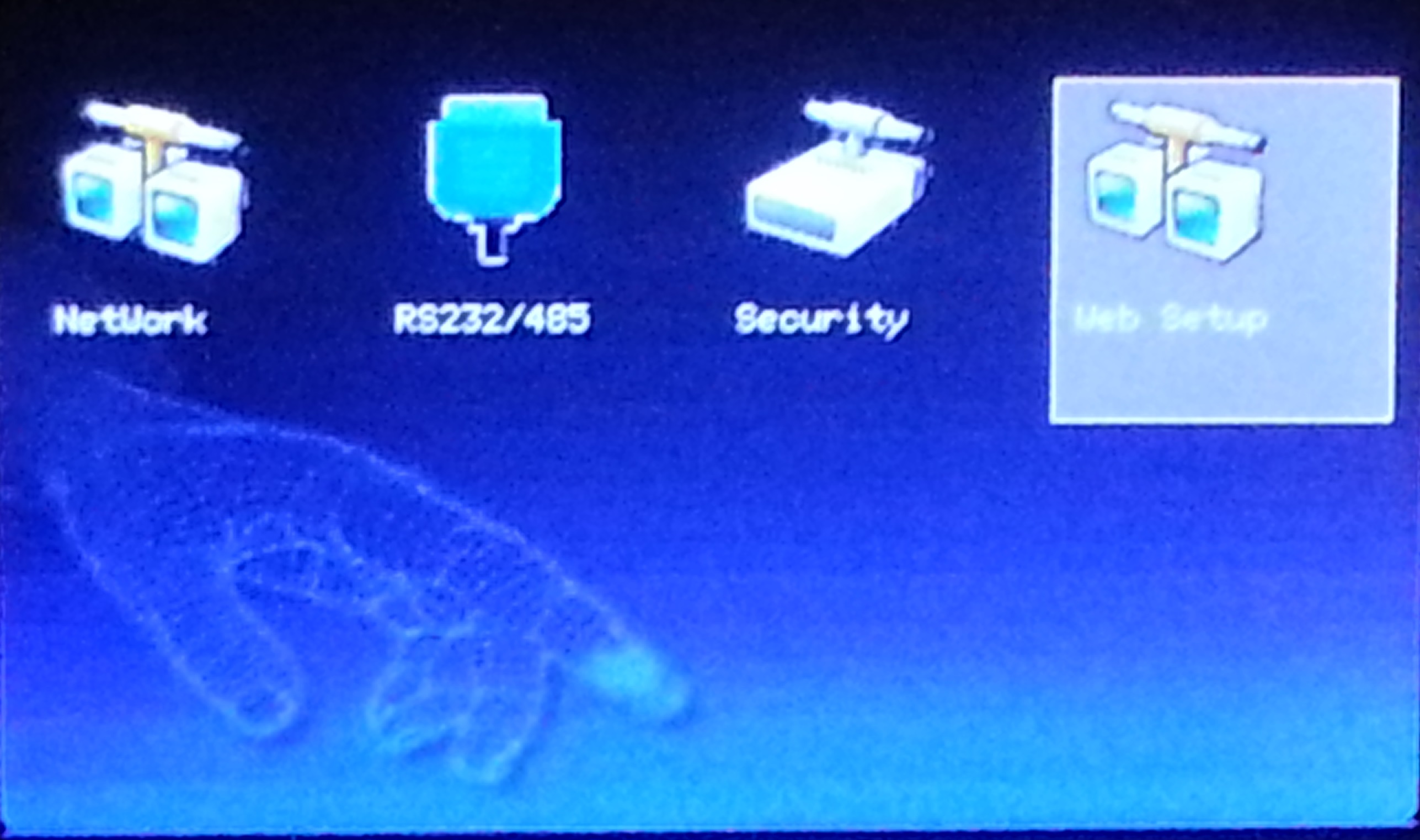

2) From the Comm menu, Select Web Setup

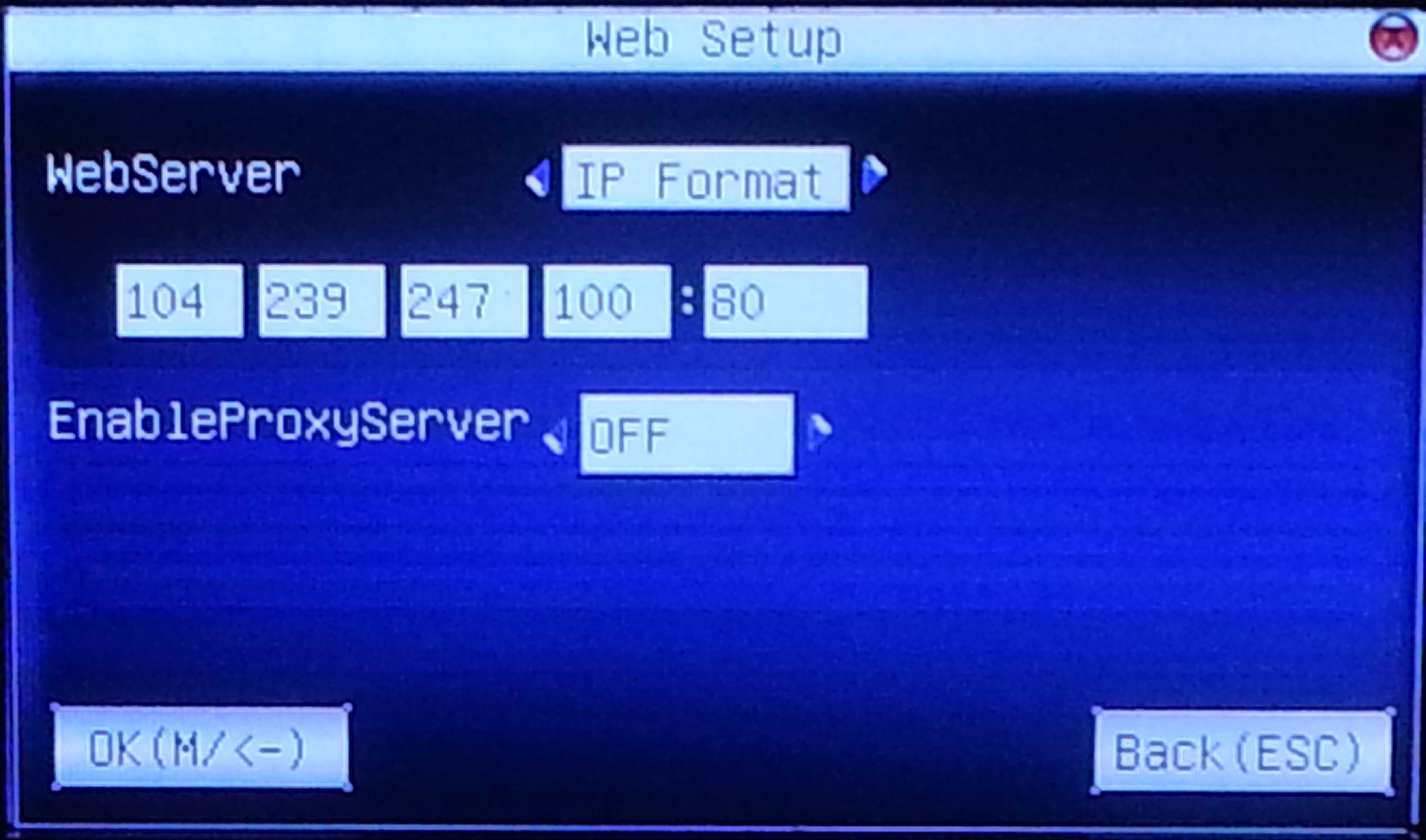

3) In Web Setup, ensure that:

  a) Clock is configured for IP Mode

      Not all clocks will have this setting

      Use Left/Right Arrows to select between URL or IP Modes

  b) Set WebServer IP to 104.239.247.100

      Use Up / Down Arrow to change fields

  c) Leave Port Number (5th Box) on 80

  d) Press M/<enter> or M/OK when finished


4) On Confirmation that changes have been saved - Press M/<enter> or M/OK to proceed


5) After the Confirmation, Press ESC two more times to return to the Idle screen.

6) Reboot the clock by

  a) Holding Red Button down (Lower Left) until power off, then pressing again to power up

      Not all clocks will have this button

  or

  b) Unplug power and plug back in again
