Depending on which model you have...

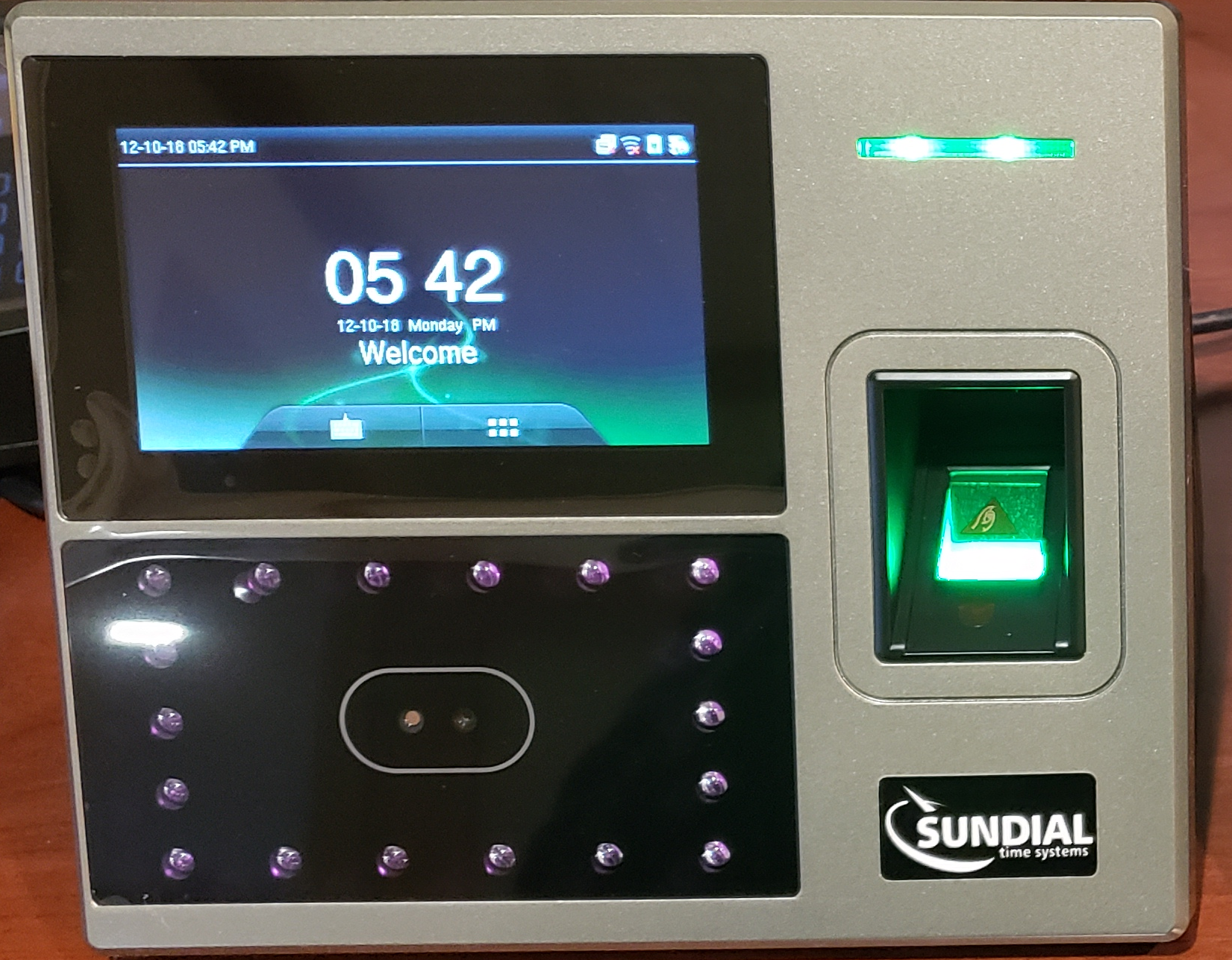

Current Model

  1. Insert the Flash Drive into the port on the left side of the clock
  2. Access the Menu
  3. Select "USB Manager"
  4. Select "Download"
  5. Select "Attendance Data"
  6. If your firmware supports it, you will be offered Selections to specify which punches.  Make a choice that includes as much as you need.

This will place a file on your Flash Drive that begins with the clock SerialNumber then an Underscore, then attlog.dat

  Example:

    AF441728600000_attlog.dat

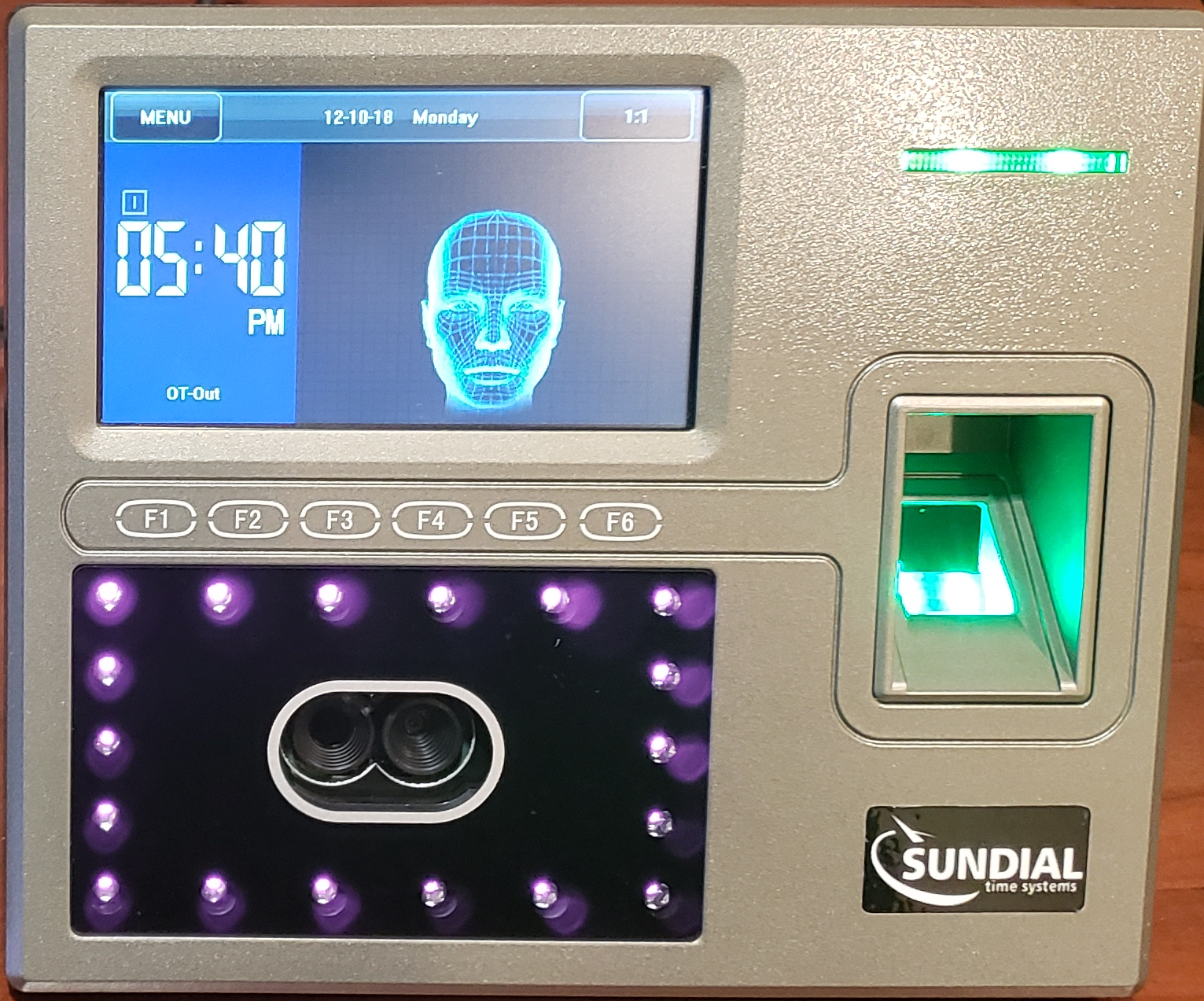

Previous model

  1. Insert the Flash Drive into the port on the left side of the clock
  2. Access the Menu
  3. Select "Dn/Upload"
  4. Select "Download Transactions"

This will place a file on your Flash Drive that begins with the clock Device ID number then an Underscore, then Attlog.dat

  Example:

    1_attlog.dat
