To connect a Series 10 fingerprint clock to wifi, please follow one of these instructions:
1) AT THE CLOCK
Go to Clock Menu >> Comm >> Wireless.
The clock will automatically scan for available SSID options. Highlight the one to use and select it.

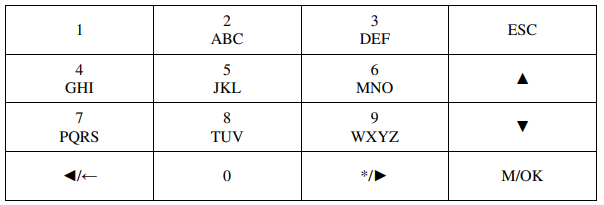

You will now be prompted to enter your password using the keypad. To enter text mode, place the cursor into the desired field, then press the right arrow key. The clock will display [English] on the bottom of the screen. Press the number associated with the letter you wish to enter, then press the number next to the letter on the bottom of the screen. E.g., for “a”, press 2 then 0, and for “A”, press 2 then 3. (This will make more sense when you see it on screen.)
To enter symbols mode, press the right arrow key while in text mode. There are 4 pages of symbols – Access different pages with the UP and DOWN arrow keys.
To return to text mode from symbols mode, press the right arrow key while in symbols mode.
To return to numeric mode from text mode, press Esc.
2) VIA USB DRIVE
Please follow the steps in this document: https://sundialtimesystems.freshdesk.com/a/solutions/articles/1000045782
3) VIA TIMEKEEPER
Please note: Your clock must be connected via Ethernet, and be set up in a clock group, for the following to work.
Go to Timekeeper >> Setup >> Clock Groups.
Double-click the clock group the clock belongs to.
Click "Clock Tools" at the bottom of the screen.
In the Clock Tools window, select the clock you want to connect to wifi.
Under Set Clock Option, enter each of the following Name and Value sets, and click "Set Clock Option" after:
Name: SSID
Value: [the name of your wifi network]
Name: AuthMode
Value: WPAPSK or WPS2PSK
Name EncrypType
Value: AES or TKIP
Name: WPAPSK
Value: [the password for your wifi network]
Click Reboot.
While the clock is rebooting, unplug the Ethernet cable. The clock will start up, search for your wifi network, and connect in a few moments.
